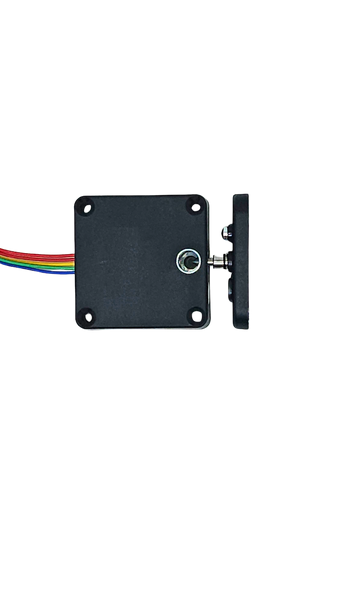

GD-100 Voltage: 12 to 28 VAC/DC
- SKU:
- GD-100
Frequently bought together:
Description
The GD-100 cabinet lock is a motor-operated locking device designed for integration with drawers, filing cabinets, gym lockers, drug cabinets and other small-storage enclosures. Its compact design, low-power operation and built-in monitoring outputs make it ideal for access control systems in high-security or high-frequency use environments
Key Specifications:
- Voltage: 12 to 28 VAC/DC
- Mode: Fail-secure (power to lock) standard; spring-door open design
- Monitoring outputs: Lock status and door status monitoring included
- Anti-pulling force (static): 220 lbs (≈ 100 kg)
- Housing material: Black Polyamide
- Lock body dimensions: 70 × 38 × 26 mm (approx. 2.75″ × 1.5″ × 1″)
- Armature (strike plate) dimensions: 80 × 32 × 18.5 mm (approx. 3.125″ × 1.25″ × 0.75″)
- Holding force (in “electromagnetic lock” version reference): 80 lbs (≈ 36 kg)
