GD-MCS425 Operating Voltage: 12-24 V AC/DC.
- SKU:
- GD-MCS425
Frequently bought together:
Description
The GD-MCS450 is a microwave motion-sensor switch designed for integration into access-control or egress systems. Emitting microwave energy to detect movement, it supports wall or ceiling mounting, and offers adjustable timer and detection-range settings—providing a touch-free exit activation solution suitable for high-traffic areas or hands‐free access points.
Key Specifications:
- Operating Voltage: 12-24 V AC/DC.
- Switch Rating: 3 A @ 120 VAC, 3 A @ 24 VDC.
- Maximum Current: ~80 mA.
- Frequency: 10.525 GHz (microwave band).
- Adjustable Time Delay: 0.5–4 seconds.
- Sensor Range: Up to 7 m.
- Dimensions: ~ 122.5 × 72 × 63 mm.
- Mounting: Wall or ceiling.
- Standard Features: Wall/ceiling mountable; adjustable timer output; adjustable sensor range.
Related Products
Related Products
GD-MCSHR50 Operating voltage: DC 12 – 30 V or AC 12 – 24 V
The GD-MCSHR50 is a high-performance microwave motion sensor designed to automate a wide range of access control and egress installations. It uses K-band microwave detection to reliably sense...

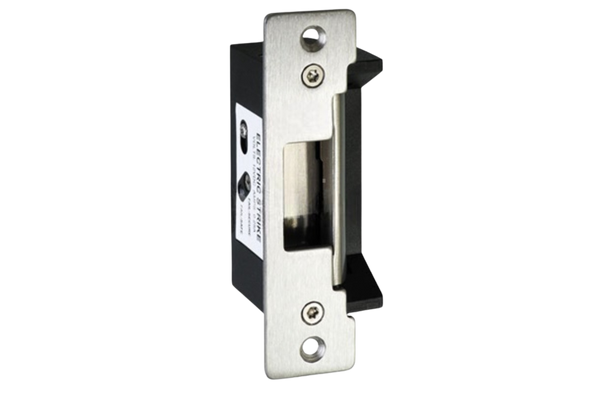

GD-320 Operating voltage: 12 VDC or 24 VDC, or dual 12/24 VDC.
The GD-320 electric strike offers a robust and versatile access-control solution designed for use with cylindrical or mortise locksets without a deadbolt. It features an ANSI-sized design for easier...

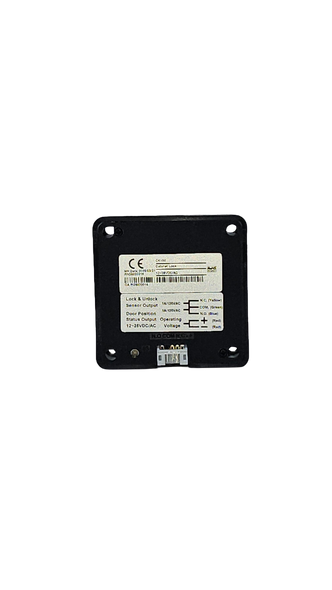

GD-100 Voltage: 12 to 28 VAC/DC
