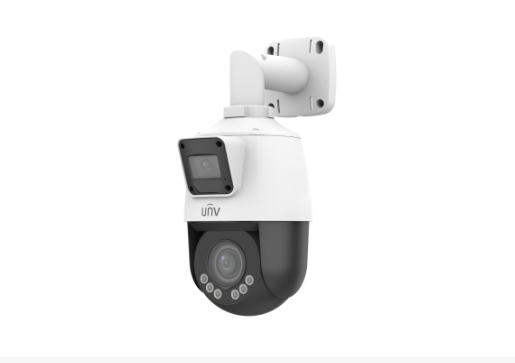

Uniview IPC9312LFW-AF28-2X4 – Dual-Lens Indoor PTZ Camera

The Uniview IPC9312LFW-AF28-2X4 is a unique dual-lens indoor PTZ network camera that combines a fixed wide-angle lens and a motorized PTZ lens into a single compact unit.
This design allows operators to maintain a constant overview scene while simultaneously zooming in on areas of interest for detail capture.

Each lens delivers 2 MP resolution, providing a total dual-channel video stream.
⚠️ Important: This camera uses two channels on the NVR.

With 4× optical zoom (2.8–12 mm), 120 dB Wide Dynamic Range (WDR), and infrared night vision up to 50 m, the camera performs reliably in indoor environments with varying lighting conditions.
The built-in microphone adds audio context, while SIP support enables advanced integration scenarios.

Designed for indoor use, the IP66-rated housing offers strong durability for public and commercial interiors.

Key Features:

• Dual-lens design: fixed lens + PTZ lens
• 2 × 2 MP resolution (dual video channels @ 25 fps)
• Consumes 2 NVR channels
• 120 dB Wide Dynamic Range (WDR)
• 4× optical zoom (2.8–12 mm)
• Infrared night vision up to 50 m
• Built-in microphone
• SIP support for advanced integration
• Ultra 265 / H.264 / MJPEG compression
• Dual video stream output
• Power: DC 12 V & PoE
• Micro SD card slot for local storage
• Operating temperature: −20 °C to 60 °C
• IP66-rated housing (indoor applications)
• Basic harness for clean installation
• Recommended mount: TR-JB07-IN

The IPC9312LFW-AF28-2X4 is an excellent choice for retail stores, offices, banks, lobbies, warehouses, and indoor public spaces where operators need both wide coverage and zoomed detail without installing multiple cameras.
