Dahua PFA13G Junction Box for IP Cameras | Alpha Intercom

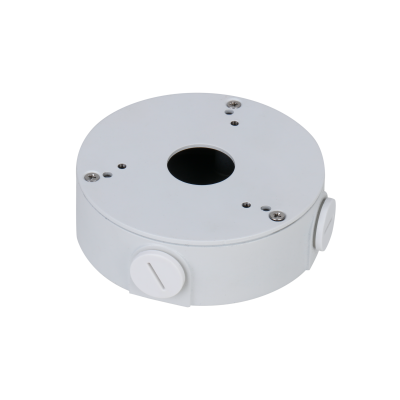

The Dahua PFA13G is a cast aluminum alloy junction box designed to sit between the mounting surface and the camera, giving installers a clean, weather-resistant cavity for cable terminations and connector slack. It is a purpose-built accessory for specific Dahua turret and dome models, so the seams line up and the finished install looks intentional rather than improvised.

Conceal Cabling Without Sacrificing Serviceability

All terminations, RJ45 connectors and pigtail slack sit inside the box, protected from weather and tampering. When a camera needs to be swapped or a run needs to be re-terminated, the box opens without disturbing the mounting surface or the conduit entry.

Bottom or Side Cable Entry

Cable can be routed through the base for a flush surface-mount installation or through the side knockout when running exposed conduit. The G1/2" pipe thread accepts standard pendant and pole mount hardware, so the same box supports wall, ceiling and pole applications.

Aluminum Alloy Construction

Die-cast aluminum alloy resists corrosion and provides a rigid mounting base rated for a 2.0 kg (4.4 lb) camera load. At 0.33 kg (0.73 lb), the box adds minimal weight to the mounting surface while distributing camera load across a wider footprint than a bare camera base.

Rated for Canadian Winters

The PFA13G operates from -40°C to +60°C (-40°F to +140°F) at up to 90% relative humidity, which covers the full seasonal range in Quebec, Ontario and the Prairies without derating.

Technical Specifications

What's in the Box

• 1x PFA13G junction box
• Mounting hardware and screw pack
• Waterproof gasket
• Installation template

Camera Compatibility

The PFA13G is model-specific. Confirm your camera against the current Dahua accessory selection guide before ordering, or contact our technical team and we will verify the pairing for you.

Ordering from Alpha Intercom

Alpha Intercom has distributed security products across Canada since 1986, with warehouses in Montreal and Toronto. Dealer orders ship the same business day and arrive anywhere in Ontario in one business day. Defective units are covered by our one business day advance-replacement RMA, so a failed accessory never holds up a job site.
