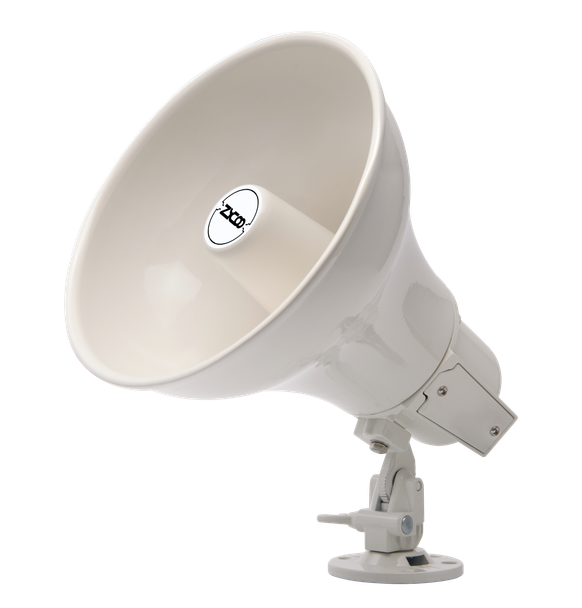

Zycoo SH10 SIP Network Horn Speaker – PoE+, IP66, 115 dB

The Zycoo SH10 is a SIP-enabled network horn speaker built for outdoor and high-noise areas where voice announcements have to stay intelligible. It registers as a standard SIP endpoint, draws power over a single Cat5e/Cat6 run, and survives Canadian winters with a -30°C operating rating and an IP66 anti-rust aluminum enclosure.

Where the SH10 fits

Loading docks, parking structures, exterior yards, school playgrounds, plazas, transit platforms and warehouse floors. A 50° x 50° coverage pattern with a 70 m effective throw means a small number of units covers a large open area, and the 400 Hz–8 kHz range is tuned for speech rather than music fidelity.

Single-cable PoE installation

The SH10 adapts automatically to the PoE standard it is fed: 15 W on IEEE 802.3at (PoE+), 8 W on 802.3af. A DC 24V-1A input is available for runs where PoE is not practical. No amplifier, no 70V distribution, no home-run speaker wire.

Two-way audio and peripheral I/O

A built-in omnidirectional electret microphone picks up to 10 m in a 50 dB ambient, so pairing the SH10 with an external call button turns a one-way paging zone into a two-way talkback point. A 3-pin terminal drives one button and one indicator light; a 2-pin terminal provides a dry contact relay output (NO, COM) for gates, strobes or door hardware.

Integrates with what you already run

Three SIP account registrations let one speaker belong to more than one system at once. It works with the Zycoo IP Audio Center or any third-party SIP server, uses the G.722 wideband codec for HD voice, and is ONVIF-compatible for event linkage from a VMS alongside IP cameras. Auto-provisioning through IP Audio Center makes multi-site rollouts practical.

Specifications

Note: the SH10 is a commercial paging and background audio device.
