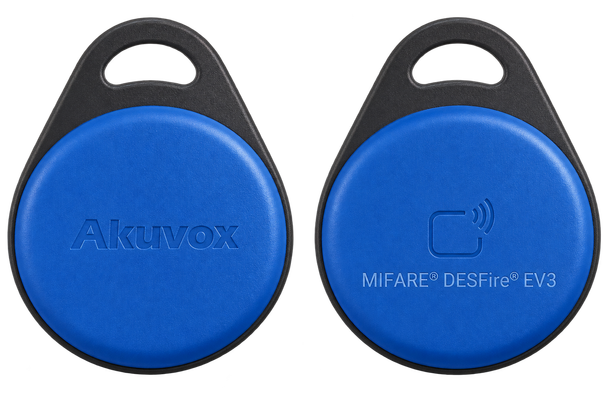

Akuvox KF03 – MIFARE® DESFire® EV3 8K RFID Keyfob

The Akuvox KF03 is a high-security 13.56 MHz RFID keyfob designed for modern access control environments that require enhanced protection, reliable performance, and strong interoperability.

Powered by MIFARE® DESFire® EV3 technology, the KF03 supports secure contactless identification and advanced encryption methods, making it ideal for commercial, residential, institutional, and enterprise access control applications. Its compact format and integrated attachment slot make it easy to carry on a key ring or lanyard for daily use.

The KF03 is engineered for dependable long-term use with 8 KB EEPROM memory, a 7-byte Static UID, and support for DES, 2K3DES, 3K3DES, and AES encryption algorithms. It also supports SUN message authentication for improved data protection and includes a transaction timer to help mitigate man-in-the-middle attacks.

Built with durable PC + ABS construction, the KF03 is suitable for everyday use in demanding access control environments. It also offers excellent endurance, with typical data retention greater than 25 years and a minimum of 1,000,000 write cycles.

Key Features:

MIFARE® DESFire® EV3 technology
13.56 MHz operating frequency
ISO/IEC 14443 Type A
8 KB EEPROM memory
7-byte Static UID
Certified IC hardware and software with EAL5+ security certification
Supports DES, 2K3DES, 3K3DES, and AES encryption
SUN message authentication for enhanced data protection
Transaction timer to help mitigate man-in-the-middle attacks
Integrated slot hole for key ring or lanyard attachment
Durable PC + ABS construction
Typical data retention of more than 25 years
Minimum 1,000,000 write cycles
RoHS, China RoHS, REACH, and Halogen Free compliant

Technical Specifications:

Specification	Akuvox KF03
Model	KF03
Credential Type	MIFARE® DESFire® EV3 Keyfob
Operating Frequency	13.56 MHz
Communication Protocol	ISO/IEC 14443 Type A
Memory	8 KB EEPROM
Application Support	Unlimited within available memory
UID	7-byte Static UID
Dimensions	44.6 × 34.5 mm (±0.1 mm)
Thickness	6 mm (±0.1 mm)
Material	PC + ABS
Color	Blue
Operating Temperature	-20°C to +50°C
Storage Temperature	-20°C to +50°C
Operating Humidity	10% to 90% RH, non-condensing
Typical Data Retention	>25 years
Write Endurance	Minimum 1,000,000 write cycles
